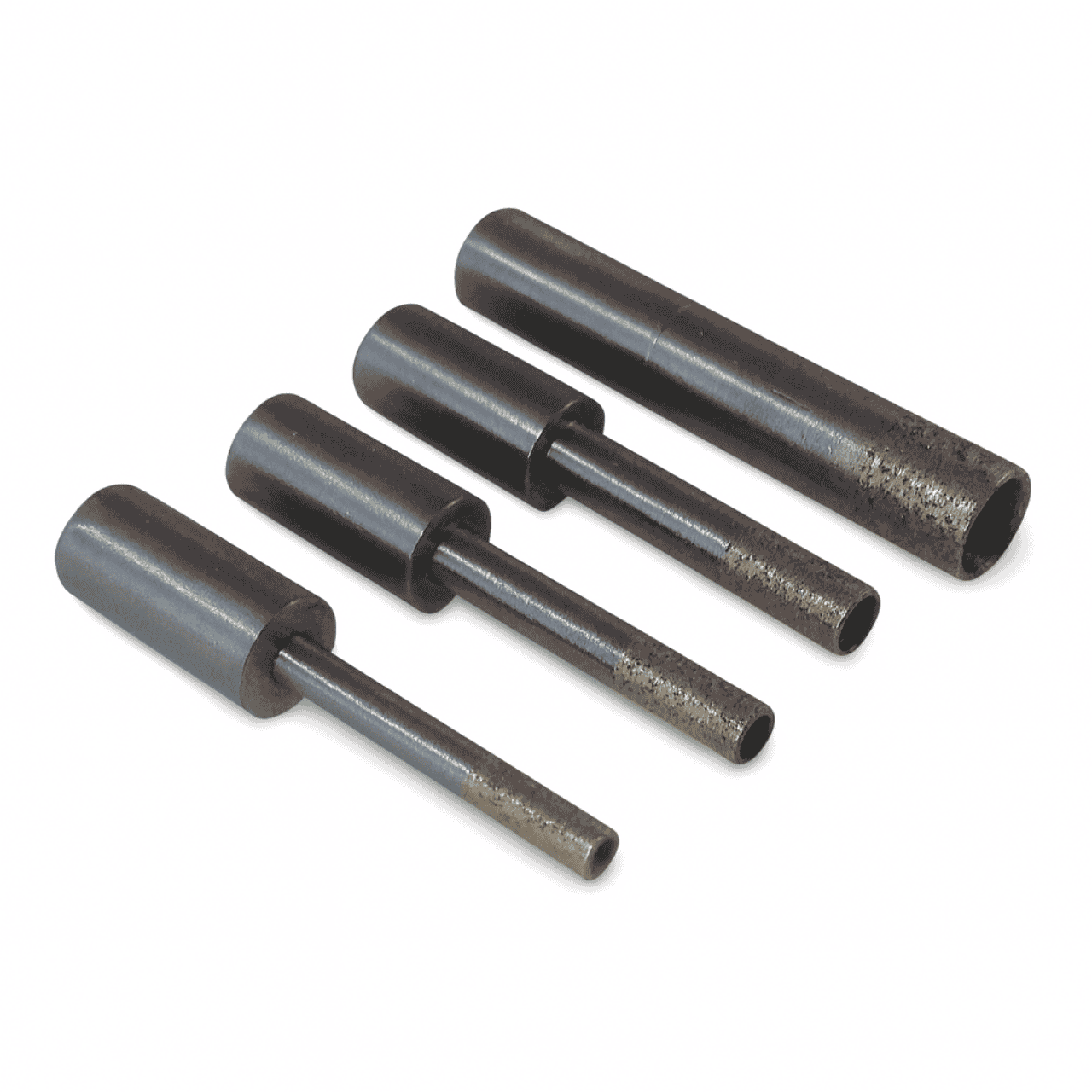

Sintered Diamond Core Drills

Sintered Diamond Core Drills

Eternal Tools

SINDCD4

Sintered diamond core drills have superior cutting and speed efficiency. Unlike electroplated or coated drills, they have several layers of diamond grit instead of just one, allowing you to drill hundreds of holes.

These Diamond Sintered core drill bits are our premium range of diamond drill bits for drilling through hard materials such as glass, stone, marble, ceramic, porcelain, granite, quartz, brick and concrete. 10mm shank size. The core runs all the way through allowing you to use these with a water feeding swivel adaptor.

Clean and dress, your Sintered Drill bits before use and after each use with an Aluminium Oxide Stick to reveal a fresh layer of diamond grit each time.

Please use water to keep the drill bit and material cool while drilling. Use at a slow speed, with little pressure.

**Sold individually**

**Other sizes available. Please contact us for a price**

£48.00
£48.00
Sale Sold out
Tax included.
Delivery information

Description

Sintered diamond has been bonded to the matrix at very high temperatures and therefore has several layers of diamonds which by dressing or cleaning with an aluminium oxide stone will help maintain the life of your drill bit, revealing a new layer of diamonds each time.

This means that the life of these sintered drill bits can last 10 - 20 times longer than coated diamond drill bits.

Technical

4mm Diameter

  • Overall length: 49mm
  • Approx. inner core diameter: 2mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 30mm

5mm Diameter

  • Overall length: 49mm
  • Approx. inner core diameter: 3mm
  • Shank: 10mm
  • Working end to shank: 30mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 30mm

6mm Diameter

  • Overall length: 49mm
  • Approx. inner core diameter: 4mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 30mm

8mm Diameter

  • Overall length:
  • Approx. inner core diameter: 6mm
  • Shank: 10mm
  • Diamond working length: 54mm
  • Cutting edge to shank: 29mm

10mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 8mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 29mm

11mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 9mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 29mm

12mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 10mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 28mm

13mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 12mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 28mm

16mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 14mm
  • Working end to shank: 34mm
  • Shank: 14mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 28mm

20mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 10mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 28mm

24mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 10mm
  • Working end to shank: 34mm
  • Shank: 10mm
  • Diamond working length: 10mm
  • Cutting edge to shank: 28mm
