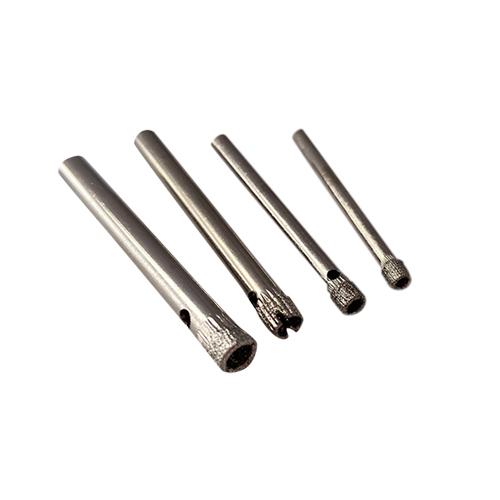

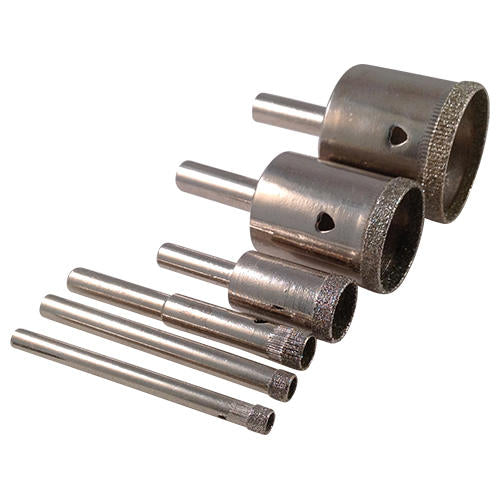

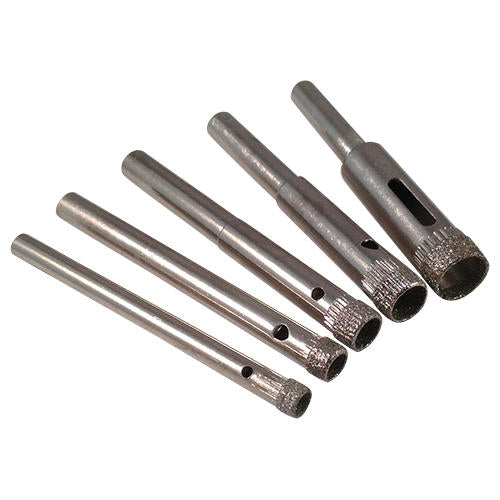

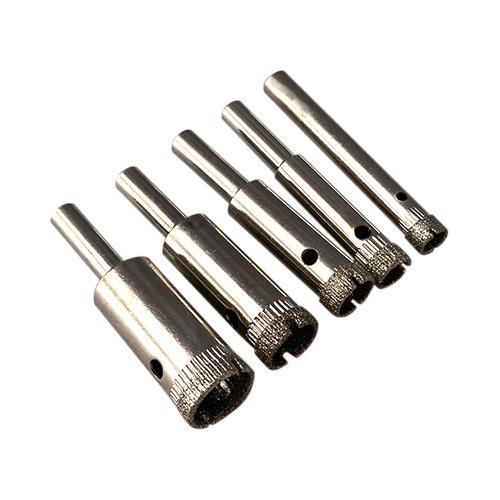

Diamond Core Drills 3.5mm - 65mm
Diamond Core Drills 3.5mm - 65mm
SKU:MDCD350
- Sizes from 3.5mm - 65mm
- Cutting rim with slots for faster cutting
- Clearance hole on the side
Diamond Core Drill Bits for Drilling Stone, Tile, Glass Bottles, Shells, Ceramic, Concrete, Porcelain and more...
These diamond core drill bits are still our most popular tools for drilling through hard materials. Sometimes referred to as diamond hole saws or diamond coring drills, they will produce a hole in whatever you put in front of them.
Read on for more detailed information, such as which sizes you can use in your Dremel rotary tool, technical specifications, including the approximate inner core diameters of each.
***Sold Individually ***
Description
Description
Very common with hobbyists, scientists, craftspeople, glass artists, fossil preparators, builders, plumbers, shopfitters and DIY enthusiasts.
These diamond core drill bits are used for drilling holes in bone china, porcelain plates, glass, ceramic, fossil, bone, mirrors, stone, concrete, brick, bathroom tiles and fish aquariums.
We have the right sizes for you if you are interested in purchasing just one diamond core drill bit for a DIY or craft project or hundreds of diamond drills as a professional tradesman.
Diamond drills for drilling tiles are essential and will drill holes far easier and with a smoother cut than any other tile drill bits.
Jewellers looking for diamond core drill sizes as small as 1mm - 3mm, please take a look at our Small Diamond Core Drills range . Alternatively, our most popular Small Diamond Drill Bits range has sizes from 0.75mm - 3mm here.
If you are using a hobby-type rotary tool such as a Dremel You can use the 3.5mm size in this range, or you might like to try our 3mm Small diamond core drills with a 2.7mm shank, or our 6mm Bottle Neck Diamond Core drills, which have a 2.35mm shank.
Helpful Note: The size indicated refers to the hole size you will achieve.
If you want to achieve a core rather than drill a hole, please see the technical tab for the internal diameter of each core drill. For example, if you need to extract a 3mm core, choose the 5mm diamond core drill bit.
Alternatively, use our Thin Wall Diamond Core Drills, which are specifically designed for extracting a core.
Tip: Use with plenty of cold water, slow speed and low pressure
Helpful note: If you find the drill bit skittering across the surface of your work, angle the drill to make the initial cut and then continue to drill vertically. Alternatively, you can adhere a piece of masking tape where you require the hole to be, or make a straightforward 'V' template out of a piece of wood similar to the one shown in our blog article ' How To Make a Stone Tea Light Candle Holder'
"Results were impressive for boring through porcelain tiles. All holes were perfect, no chipping. The bits sailed through the tiles no problem. Only took a couple of minutes and the job was done" - John (Monafissel)"
"Your 6mm diamond core drill bits have been excellent. I had 200 plates to drill with 6 core drill bits and they have performed so well that I was able to spare one for a friend!" - Maggie MacMillan-Scott"
"The core drill bit is absolutely fantastic, for years I have avoided drilling glass and ceramics, now there's no stopping me" - H.Maclennan"
Disclaimer. Using rotary tools near water has never been, to the best of our knowledge, endorsed by any of the rotary tool manufacturers. If you choose to drill near water or with attachments under water connected to your drill, then you do so at your own risk. Please be aware that mixing electricity and water can be very dangerous.
Technical
Technical
Diamond Hole Cutter, 120# Diamond grit which is precisely electroplated onto a steel shank
Drilling Depth: from 25mm to 35mm
Sizes stated are +/- 0.2mm
Wall thickness: 1mm - 1.5mm
Please note. These diamond core drills have been manufactured with a precision outer diameter for drilling a hole, To drill a core, the inner core diameter sizes are shown below but should be taken as an approximate measurement. For precise inner core extraction, please use our Thin Wall Diamond Core Drills
3.5mm Diameter
- Overall length: 42mm
- Shank: 3.0mm
- Approx. Inner core diameter: 1.5mm
4.0mm Diameter
- Overall length: 50mm
- Shank: 3.5mm
- Approx. Inner core diameter: 2.5mm
5.0mm Diameter
- Overall length: 50mm
- Shank: 4.4mm
- Approx. Inner core diameter: 3.5mm
6.0mm Diameter
- Overall length: 50mm
- Shank: 5.3mm
- Approx. Inner core diameter: 4.0mm
7.0mm Diameter
- Overall length: 50mm
- Shank: 6.0mm
- Approx. Inner core diameter: 5.0mm
8.0mm Diameter
- Overall length: 50mm
- Shank: 6.5mm
- Approx. Inner core diameter: 6.0mm
10mm Diameter
- Overall length: 50mm
- Shank: 6.0mm
- Approx. Inner core diameter: 7.8mm
- Internal core depth: 25mm
12mm Diameter
- Overall length: 50mm
- Shank: 6.0mm
- Approx. Inner core diameter: 9.5mm
- Internal core depth: 25mm
14mm Diameter
- Overall length: 50mm
- Shank: 6.5mm
- Approx. Inner core diameter: 11.5mm
- Internal core depth: 28mm
16mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 13.5mm
- Internal core depth: 28mm
18mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 15mm
- Internal core depth: 26mm
20mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 17mm
- Internal core depth: 26mm
22mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 19.5mm
- Internal core depth: 26mm
24mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 21mm
- Internal core depth: 26mm
25mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 22.5mm
- Internal core depth: 26mm
26mm Diameter
- Overall length: 50mm
- Shank: 8.0mm
- Approx. Inner core diameter: 23.5mm
- Internal core depth: 26mm
28mm Diameter
- Overall length: 55mm
- Shank: 8.0mm
- Approx. Inner core diameter: 25.5mm
- Internal core depth: 26mm
30mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 27.5mm
- Internal core depth: 26mm
31mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 28mm
- Internal core depth: 26mm
32mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 29.5mm
- Internal core depth: 26mm
33mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 30mm
- Internal core depth: 26mm
35mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 32mm
- Internal core depth: 26mm
38mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 35mm
- Internal core depth: 26mm
40mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 37mm
- Internal core depth: 26mm
42mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 39mm
- Internal core depth: 26mm
45mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 42mm
- Internal core depth: 26mm
48mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 45mm
- Internal core depth: 26mm
50mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 46mm
- Internal core depth: 26mm
55mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 52mm
- Internal core depth: 26mm
60mm Diameter
- Overall length: 55mm
- Shank: 10mm
- Approx. Inner core diameter: 56mm
- Internal core depth: 26mm
64mm Diameter
- Overall length: 60mm
- Shank: 10mm
- Approx. Inner core diameter: 61mm
- Internal core depth: 26mm
65mm Diameter
- Overall length: 60mm
- Shank: 10mm
- Approx. Inner core diameter: 62mm
- Internal core depth: 26mm
