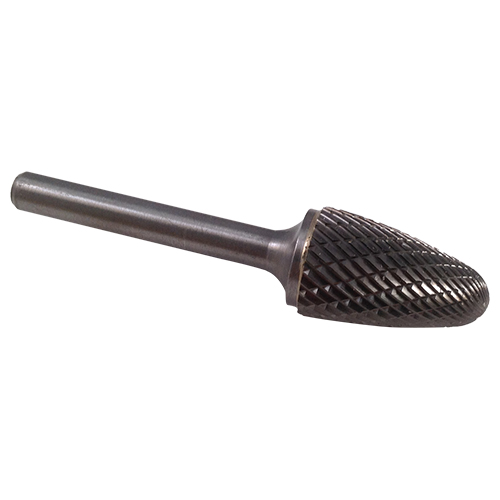

• 16mm x 25mm solid Tungsten Carbide Burr Round Nose Tree shape cutting burr with double cut flutes on a 6mm shank shown on a white background
  • 16mm Tungsten Carbide Burrs with a 6mm shank-1
1 2

16mm Tungsten Carbide Burr Round Nose Tree

16mm Tungsten Carbide Burr Round Nose Tree

Eternal Tools

16TCBRNT

  • 6mm shank (1/4")
  • 16mm diameter
  • 25mm cutting length
  • Double cut (also known as diamond cut) for controlled, efficient material removal
  • Suitable for steel, stainless steel, cast iron and other hard materials
  • Use with a die grinder, suitable rotary tool or flexible shaft

This solid tungsten carbide burr has a round nose tree shape, combining a rounded tip for working in curves and contours with a wider cutting body for removing material and smoothing edges.

It is particularly useful for enlarging and reshaping existing holes, removing rough metal from around an opening, rounding edges, making concave cuts, deburring, gouging and general stock removal.

The intersecting flutes of the double-cut head create numerous cutting edges. This helps the burr remove material efficiently while producing smaller chips, giving you greater control and a finer surface finish than a more aggressive single-cut burr.

£33.20
£33.20
Sale Sold out
Tax included.
Delivery information

Description

Please note: a carbide burr is intended for freehand material removal, shaping and enlarging existing openings. It does not replace a drill when a precise, accurately sized hole is required.

How to use

Use with a machine that has a chuck or collet capable of securely holding the 6mm shank. Insert as much of the shank as practical into the tool, keep the burr moving across the work and allow the cutting edges to do the work without excessive pressure.

Suitable for use with a die grinder, rotary tool or suitably rated flexible shaft. Do not exceed 35,000 RPM. Always wear appropriate eye protection, as the burr can produce sharp metal chips.

The durable tungsten carbide cutting head is well suited to demanding work on hard materials including:

  • Hardened and stainless steel
  • Cast iron and other ferrous metals
  • Stone, ceramic and porcelain
  • Reinforced plastics
  • Hardwood

Technical

Tungsten Carbide Cutting Burr

  • Shape: Round Nose Tree
  • Diameter: 16mm
  • Cutting length: 25mm
  • Overall length: 60mm
  • Shank: 6mm (1/4")
  • Double Cut (Diamond Cut)
