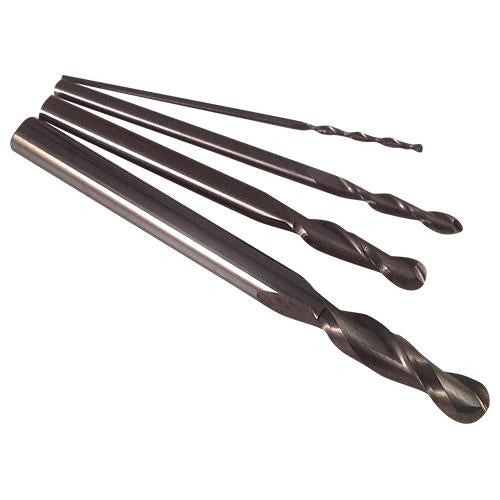

Carbide Ball Nose End Mills. 2 flute. 2mm - 6mm

Carbide Ball Nose End Mills. 2 flute. 2mm - 6mm

Eternal Tools

SKU:BNCEM2

Our Solid Tungsten Carbide Ball Nose Slot drills, or Ball nose end mills, have 2 flutes and a radius at the bottom which makes for a nicer surface finish in your workpiece, meaning less work for you as the piece won’t need to be finished any further.

Due to their shape they will disperse heat over a wider area, therefore allowing for a higher speed of cutting.

Used for 3D contour milling, shallow slotting, pocketing and contouring applications because they are less prone to chipping and leave a nice rounded edge. Can be used on much harder materials than regular HSS ball nose end mills. For use in a CNC machine, lathe or milling machine.

Use a square end, regular 2 flute slot drill, or a Roughing end mill to remove large areas of material first,  then use a ball nose end mill to smooth the surfaces.

Available in 2, 3, 4, 5, 6mm sizes

Read on for technical specifications

Regular price £6.25
Regular price Sale price £6.25
Sale Sold out
Tax included.
Delivery information

Technical

Solid Tungsten Carbide Ball Nose End Mills. Up-Cut. 2 Flute.

  • Diameter: 2mm, Cutting edge length: 10mm, Shank: 2mm, Overall length: 38mm
  • Diameter: 3mm, Cutting edge length: 8mm, Shank: 3mm, Overall length: 38mm
  • Diameter: 4mm, Cutting edge length: 14mm, Shank: 4mm, Overall length: 40mm
  • Diameter: 5mm, Cutting edge length: 18mm, Shank: 5mm, Overall length: 50mm
  • Diameter: 6mm, Cutting edge length: 20mm, Shank: 6mm, Overall length: 50mm
